How to place a registered Active@ Boot Disk product into a Windows PE image for use in a network PXE boot environment?

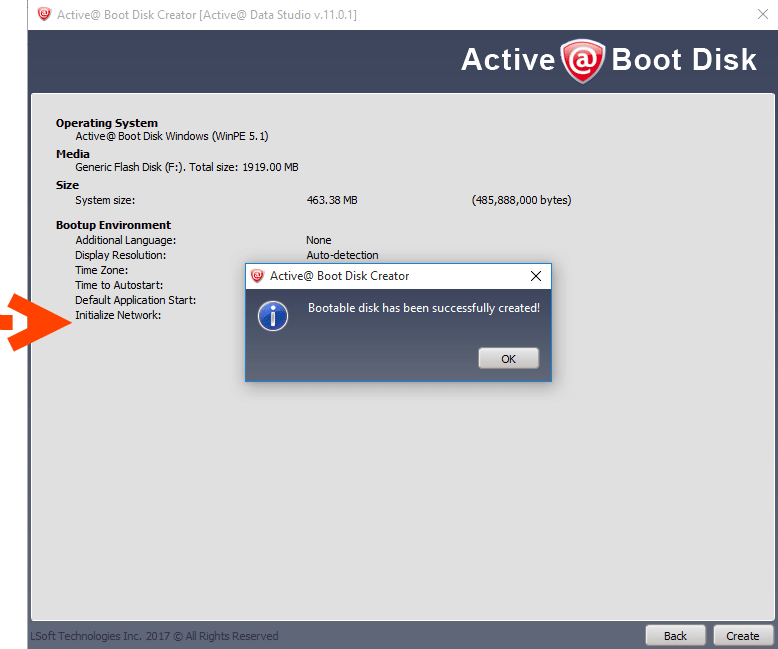

Start the Active@ Boot Disk Creator and make bootable media.

Let's assume that the Active@ Boot Disk media has an F: letter in our environment

Active@ Boot Disk and killdisk software Active@ Boot Disk and killdisk software

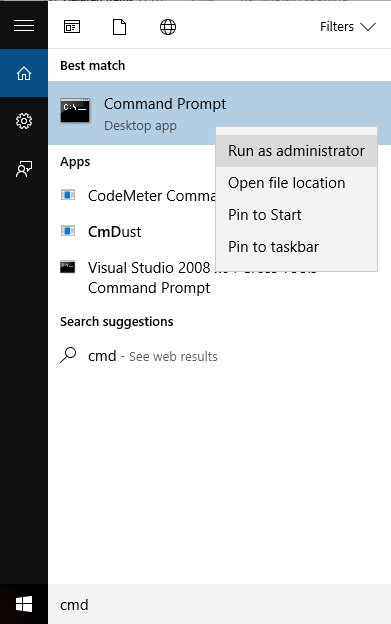

Using the Windows Search Bar, find and run command prompt as administrator:

Using the Windows Search Bar

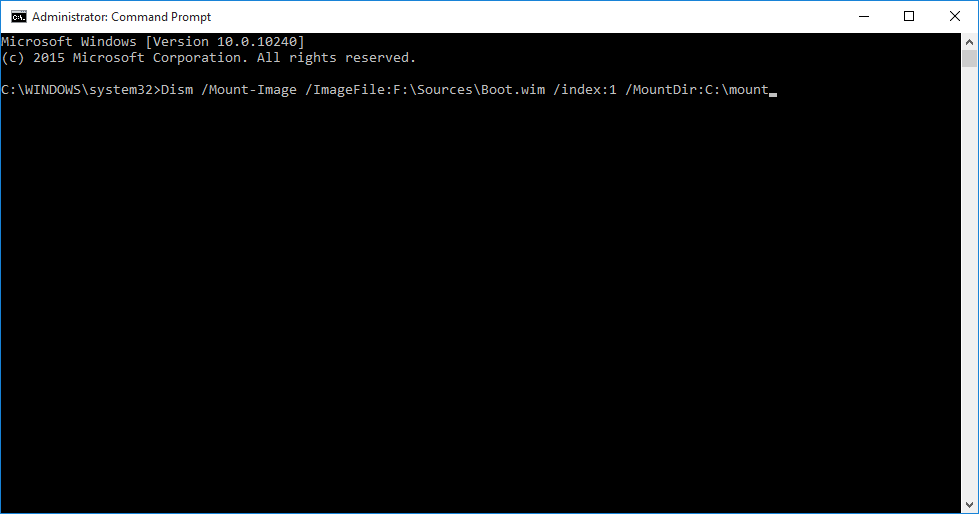

Mount the Boot.wim to the \mount directory using the DISM tool

Command: Dism /mount-image /imagefile:F:\sources\boot.wim /index:1 /mountdir:C:\mount
Using the Windows Search Bar

Replace BOOTDISK.KEY in \mount directory with BOOTDISK.KEY in Active@ Boot Disk media (F:\ BOOTDISK.KEY)

Replacing Active@ Boot Disk

Dismount the Boot.wim image, commiting the change

Command: Dism /Unmount-Image /MountDir:C:\mount /commit
Dismount the Boot.wim image
